DXF-data ASK 18

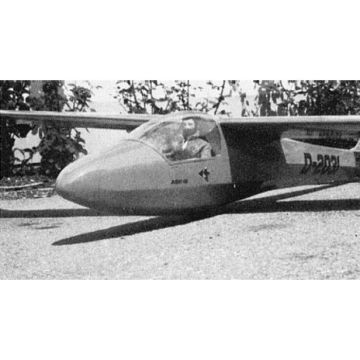

The DXF data of Hermann Eichner refer to the ASK 18 designed by Arnold Hofman (VTH construction plan 3200707). They allow the production of the components on the home CNC milling machine or at a milling service.

The data includes all major components such as ribs, frames and the slipway. Compared to the original construction plan by Arnold Hofman, they have been modified and modernized: Among other things, with a more powerful airfoil (now: SD7034), with support feet and without a pre-sweep for easier assembly, with a comb spar and a modified wing stitching.

Technical data

• Wingspan: 3,500 mm
• Fuselage length: 1,470 mm
• Weight without battery: 2.750 g
• Weight ready to fly: 3.211 g
• Airfoil (modified):  SD7034
• Aileron servos: 2 × KST DS135MG digital
• Rudder servo: D-Power DS 450BB MG digital
• Elevator servo: D-Power DS 450BB MG digital
• Electric flaps: D-Power 300×12 mm (16 mm height)
• LiPo battery: SLS 4s-LiPo 3.800 mAh
• Motor: 4250 Brushless, 500 kV
• ESC: D-Power Comet 60 A
• Propeller: aero-naut 15×8" folding
